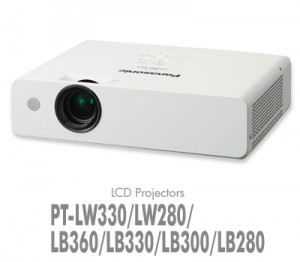

Panasonic PT-LB330 ( 3300 Lumens) XGA Resolution

Panasonic PT-LB330 ( 3300 Lumens) XGA Resolution
Kategori - Panasonic, LCD Projector
Di lihat 828 kali
Harga Rp (Hubungi CS)

Harco Projector Menjual LCD Projector Panasonic seri PT-LB330, 3300 Ansi Lumens XGA (1024 x 768 ) Resolusi

PTLB330    LCD Projector Panasonic PTLB330

Detil Spesifikasi Panasonic PTLB330 :

Power supply 100–240 V AC, 50/60 Hz
LCD Panel Panel size 16 mm (0.63″) diagonal, 4:3 aspect ratio
Display method Transparent LCD panel (x 3, R/G/B)
Drive method Active matrix
Pixels 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels
Pixel configuration Stripe
Lens 1.2x manual zoom (throw ratio: 1.46-1.75:1),
manual focus, F=1.58-1.75, f=18.85-22.63 mm
Lamp 230 W x 1
Lamp replacement cycle 4,000 h/5,000 h/8,000 h*1 (Lamp power: Normal/Eco1/Eco2)
Screen size 0.76-7.62 m (30-300 in), 4:3 aspect ratio
Brightness 3,300 lumens
Center-to-corner uniformity ratio 80%
Contrast ratio 5,000:1 (all white/all black)
(RGB signal input, Color mode: Dynamic, Lamp power: Normal)
Resolution (RGB) 1,024 x 768 pixels
Scanning frequency HDMI IN fH: 15-91 kHz, fV: 50-85 Hz, dot clock: 25-162 MHz
RGB fH: 15-91 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower
YPBPR (YCBCR) fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz[1080 (1125)/50p]
S-Video/Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/SECAM/PAL-N]
Keystone correction range Vertical: ±30° (Auto, Manual)
Horizontal: ±15° (Manual)
Installation Ceiling/floor, front/rear
Built-in speakers 10 W (monaural)

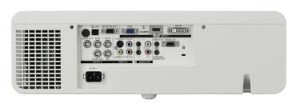

Terminals HDMI IN HDMI 19P x 1 (compatible with HDCP, Deep Color)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p,
1080/50p, 1080/24p, 1080/25p, 1080/24sF, 1080/30p,
VGA (640 x 480)-WUXGA (1,920 x 1,200),*4
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER 1 IN D-sub HD 15-pin (female) x 1 [RGB/S-Video/YPB(CB)PR(CR)/Scart RGB]
COMPUTER 2 IN/OUT D-sub HD 15-pin (female) x 1 [RGB/Monitor output] (Input/output switching)
VIDEO IN Pin jack x 1
AUDIO IN M3 x 2 (L-R x 2)
AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
LAN RJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX,
compliant with PJLink™)
SERIAL IN M3 (L, R) x 1, 0 –2.0 V [rms]
USB A USB type-A (for the USB Memory Viewer) x 1
USB B USB type-B (for the USB Display) x 1
Operation noise TBD (Lamp power Normal), 29 dB (Lamp power Eco)
Cabinet material Molded plastic (PC)
Dimensions (W x H x D) 335 mm x 96 mm*5 x 252 mm
Weight Approx. 2.7 kg (6 lbs) (tentative)
Operating Temperature Normal use: 5 °C-40 °C (41 °F-104 °F) [at altitudes less than 1,400 m (4,500 ft)]
5 °C-35 °C (41 °F-95 °F) [at altitudes of 1,400-2,700 m (4,500-8,800 ft)]
Operating humidity 20-80 % (no condensation)
Supplied accessories Power cord x 1*7, wireless remote control unit x 1,
batteries (AAA/R03/LR03 type x 2), computer cable x 1,
Software CD-ROM (Multi Projector Monitoring & Control Software)



Hubungi CS untuk type Lampu proyektor  yang belum tersedia pada list diatas.

Hub Cs Info Harga & Stock Terupdate :

Telp. 021-29986626 / 021-40406778

WA : 085692406046

Email : info@harcoprojector.com

Alamat Office. WTC Mangga Dua Lt.2 Blok B No.178-179 Jakarta

Alamat Showroom. Mangga Dua Square Lt.1 Blok A No.P035 Jakarta

Website. www.harcoprojector.com
